Description
Professional Diagnostic Scanner for Electric, Hybrid, Petrol & Diesel Vehicles

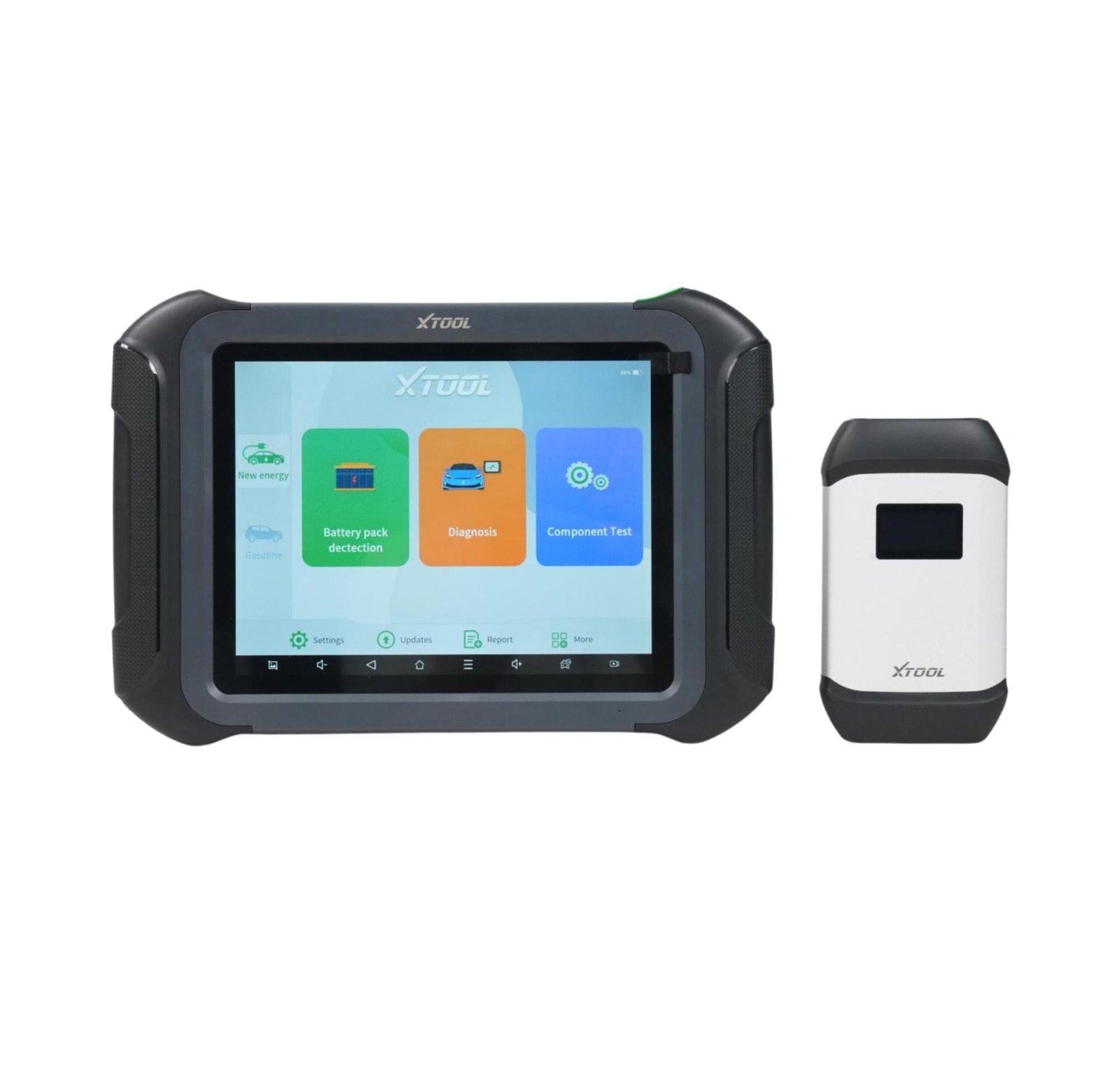

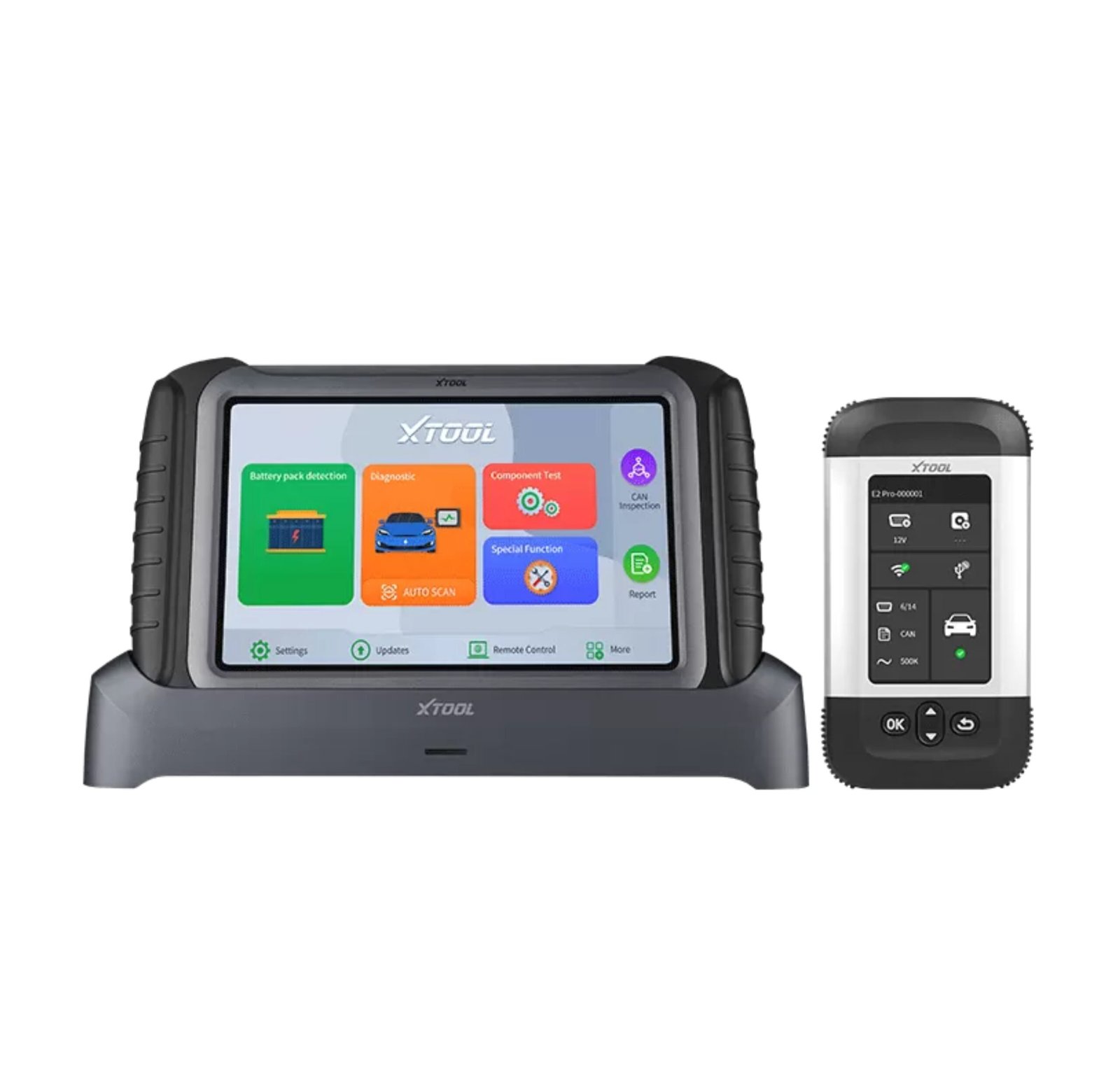

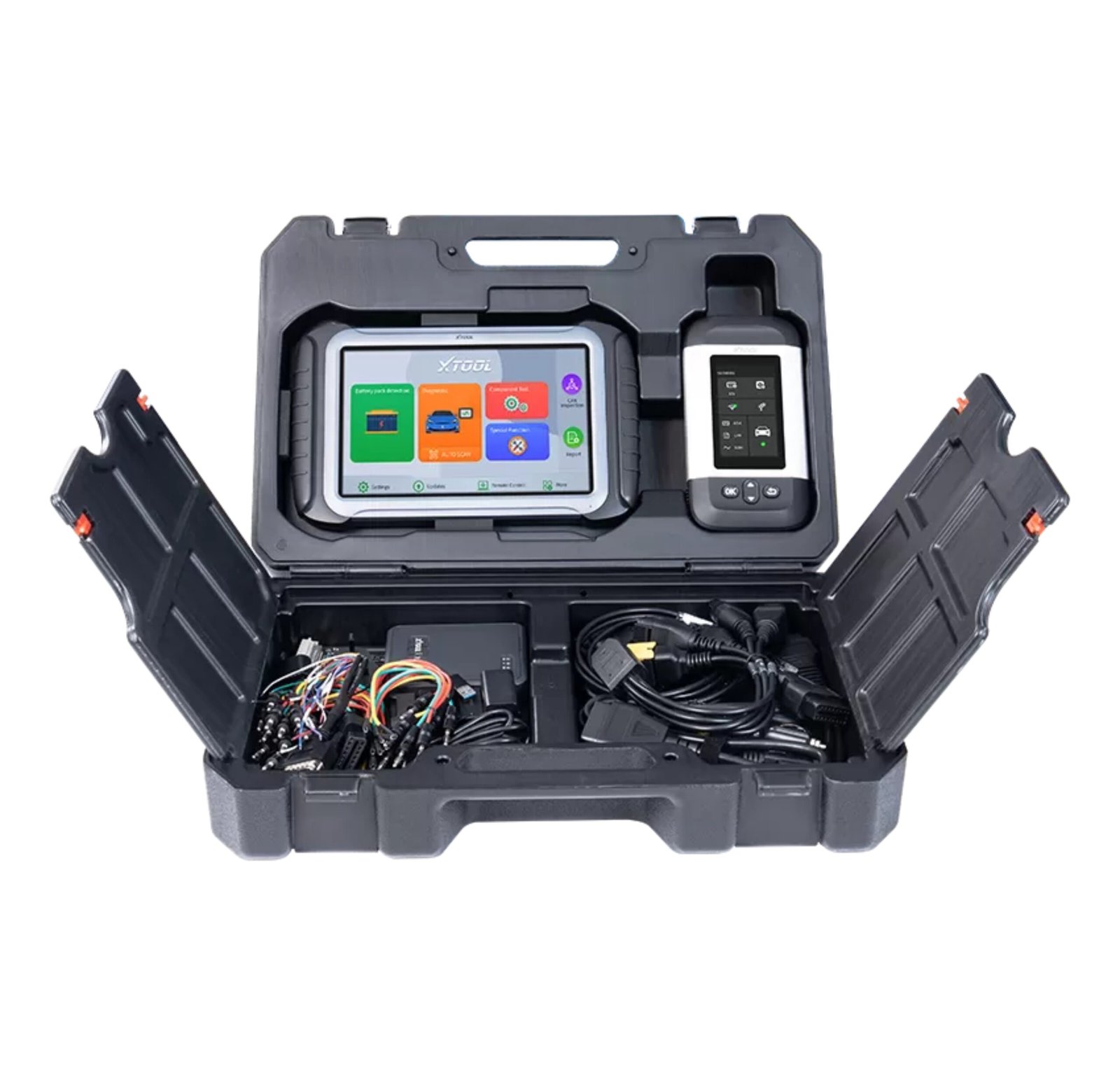

The XTOOL E2 Pro is an advanced professional diagnostic scanner designed for modern automotive workshops handling electric vehicles (BEV), plug-in hybrids (PHEV), range-extended EVs (REEV), petrol, and diesel vehicles. It combines comprehensive vehicle diagnostics with advanced EV battery, BMS, high-voltage system, and component testing functions.
The E2 Pro provides full-system diagnostics, battery pack analysis, BMS repair, EV component testing, online coding and programming, offline programming, immobilizer functions, and more than 55 special functions. It supports modern communication protocols including CAN FD and DoIP, making it suitable for professional diagnostics on newer-generation vehicles.
Key Features
- Supports BEV, PHEV, REEV, petrol and diesel vehicles
- Full-system vehicle diagnostics
- Advanced EV battery pack diagnostics
- BMS data recovery and BMS repair functions
- High-voltage system rapid analysis
- CAN bus detection
- EV component testing
- Gateway simulation
- Supports Tesla diagnostics with dedicated connectors
- Supports BMW, Mercedes-Benz, VAG and other advanced diagnostic applications
- Online coding and programming
- Offline coding and programming
- Key programming and immobilizer functions
- CAN FD and DoIP protocols
- Topology mapping
- Auto VIN identification
- Pre-scan and post-scan
- Bi-directional / actuator testing
- More than 55 special functions
- 3 years of free software updates
- 2 years warranty
Advanced EV Diagnostic Functions
The E2 Pro is designed for deeper EV troubleshooting, including battery pack analysis, cell-level voltage and temperature monitoring, BMS repair, BMS data recovery, SOH detection, and high-voltage system diagnostics.
It can also perform component testing for important EV systems such as:
- DC/DC converter testing
- OBC (On-Board Charger) testing
- Electric compressor testing
- Motor controller testing
- BMS testing and repair
- Charging pile module testing
- EV battery pack diagnostics
- Gateway simulation
These functions help technicians identify faults more accurately and reduce unnecessary component replacement.
Advanced Petrol & Diesel Functions
The E2 Pro is not limited to EVs. It can also be used as a professional diagnostic scanner for conventional vehicles, providing functions such as:
- ECU configuration
- Injector coding
- Throttle adaptation
- Gearbox adaptation
- ABS bleeding
- EPB reset
- SAS calibration
- BMS reset
- DPF regeneration
- TPMS reset
- Oil/service reset
- ADAS calibration
- Airbag/SRS functions
- Suspension adaptation
- Crankshaft sensor relearn
- Clutch adaptation
- EGR adaptation
- Turbo adaptation
- Radar calibration
- Key programming
- EEPROM functions
- ECU reset
- And many more service functions
Professional Programming & Coding
The E2 Pro supports advanced programming and coding applications, including online coding, online programming, offline coding, and offline programming on supported vehicle brands and software coverage.
It also supports advanced applications for VAG, BMW, Mercedes-Benz, Ford, Lincoln, Mazda, and other supported vehicles.
Technical Specifications
| Specification | Details |
|---|---|
| Operating System | Android 10 |
| Processor | 8-Core, up to 2.2GHz |
| RAM + Storage | 8GB + 256GB |
| Display | 10.1-inch, 1920 ? 1200 |
| Rear Camera | 8MP |
| Battery | 6400mAh, 7.2V |
| Wi-Fi | 2.4GHz / 5GHz |
| Bluetooth | BLE 5.0 |
| Communication | Wi-Fi / USB |
| Vehicle Voltage | 9?36V |
| Protocols | CAN FD, DoIP |
| Free Updates | 3 Years |
| Warranty | 2 Years |
Ideal For
- Professional EV repair workshops
- Hybrid vehicle specialists
- Automotive diagnostic centers
- Battery and BMS specialists
- Auto electricians
- General automotive repair workshops
- Tesla diagnostic and repair services
- Advanced ECU coding and programming
- EV component testing and troubleshooting
AUTOLKING Advantage
One powerful diagnostic solution for petrol, diesel, hybrid, and electric vehicles ? helping your workshop diagnose smarter and repair with confidence.
